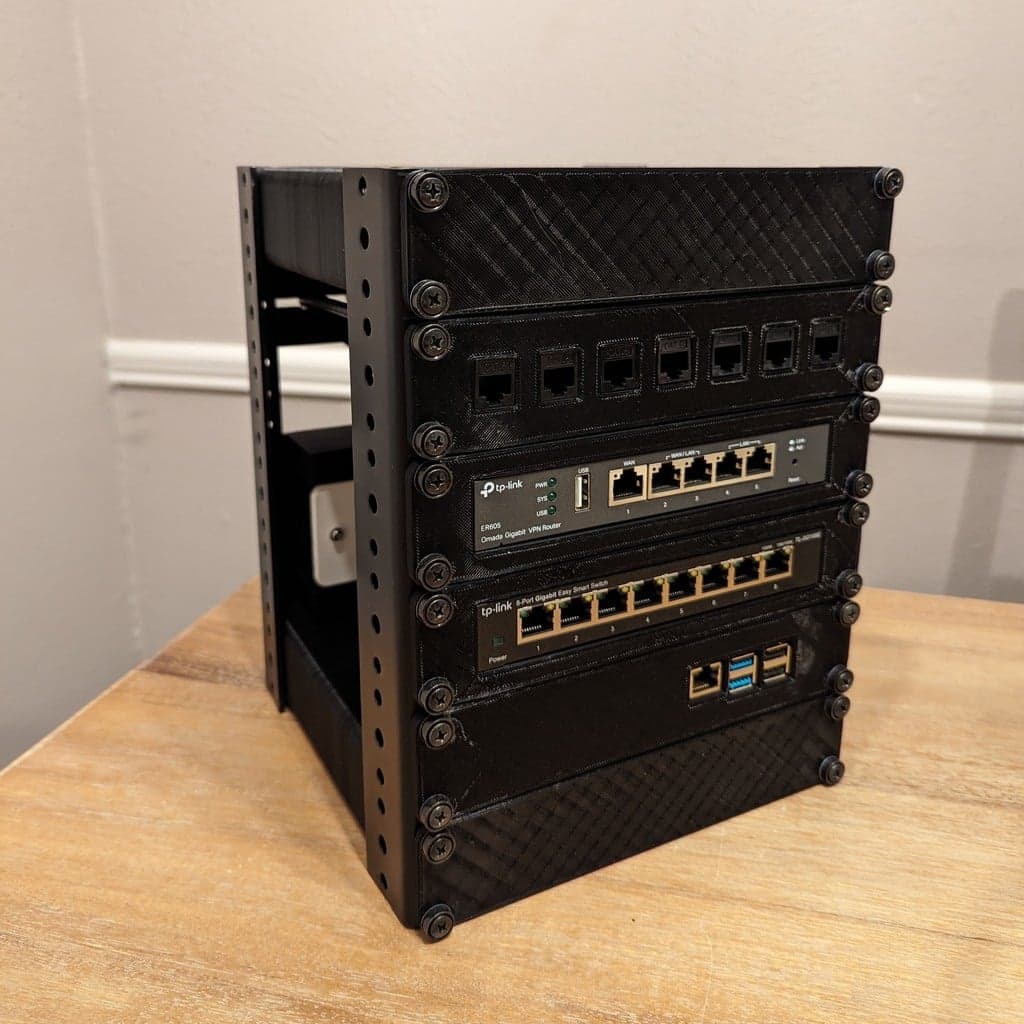

MiniRack Base

# MiniRack - Miniature Modular Racking System ## Purpose This system was born from a desire to create a way to mount various equipment in a similar way to a conventional [19-inch rack](https://en.wikipedia.org/wiki/19-inch_rack) on a smaller scale while still maintaining adherence to as many applicable standards as possible. ## Schematic/Dimensions Dimensioned part drawings have been provided in the images section. The default width and depth of the MiniRack is 8 inches, with the height dependent on the size of rail selected. Be mindful of the rail clearance when selecting rails for mounting bases. If necessary, adjust the rail clearance as detailed in [Customization](#customization) to accomodate irregular rail thickness. ## Relevant Standard(s) The MiniRack adheres to the vertical spacing dimensions outlined by EIA-310-D. This specification details the way mounting holes are arranged on rack rails and compatible equipment to ensure interoperability. While the MiniRack's default horizontal spacing has been altered from specification to achieve the goal of a smaller scale, the provided Fusion 360 files include parameters to alter the horizontal scale as desired. ## Customization MiniRack uploads include the source Fusion 360 design files. Dimensions have been meticulously parameterized to allow customization of rack dimensioning. Relevant parameters can be found in the [User Parameters](https://help.autodesk.com/view/fusion360/ENU/?guid=SLD-MODIFY-CHANGE-PARAMETERS) area of Fusion 360. Given a sufficiently large 3D printer, a standard 19-inch rack could conceivably be created with minimal adjustment. ## Assembly Rack rails and appropriate mounting hardware will need to be acquired prior to assembly. These can be fabricated as outlined by the [specification](https://en.wikipedia.org/wiki/19-inch_rack#/media/File:Server_rack_rail_dimensions.svg) or purchased from a retailer. When planning an assembled rack, note that the top and bottom rack
